Water And Fuel Detection System

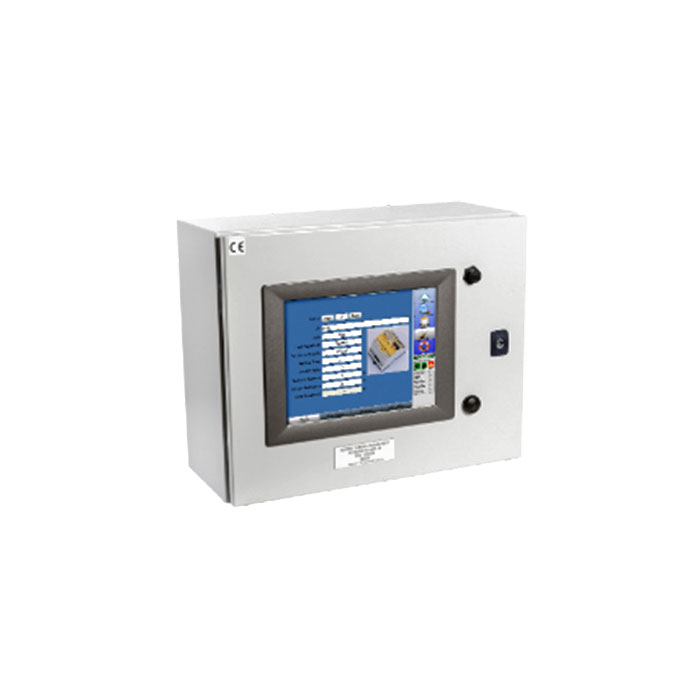

TRACETEK TT-TS12 Touch screen monitoring and alarm module

  • 12" full color, high resolution SVGA touch screen display
  • Works with TRACETEK Sensor Interface Modules or wireless Mesh Transmitters.
  • Quick status overview of all leak detection cables.
  • Interactive and dynamic leak location maps and displays
  • The leak location is displayed over the floor plan, piping layout or the photo of a single piece of equipment at the user's discretion.
  • Audible alarms, summary relays, serial data and web interfaces are provided as standard features.

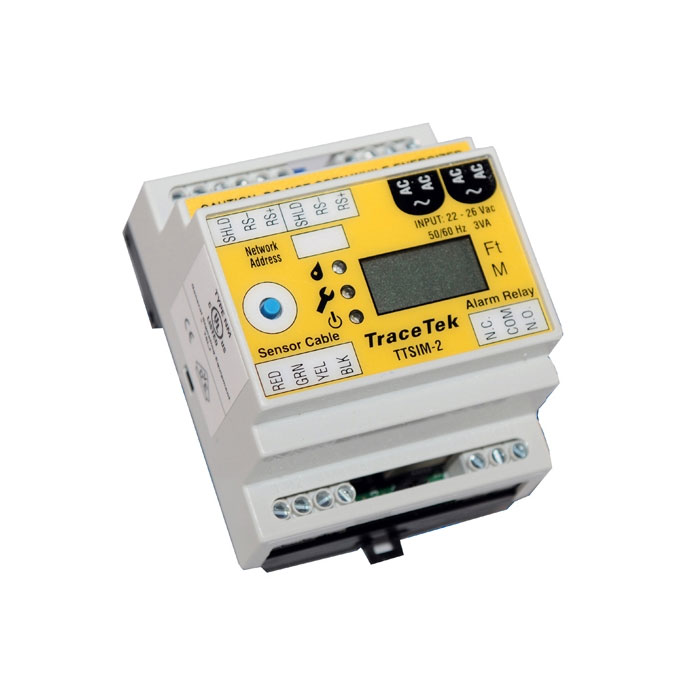

TTSIM-2

TRACETEK TTSIM-2 is a primary sensor interface module with capacity to monitor up to 150 m (500ft) of sensor cable. Output is via3-digit leak location, relay contacts and serial data.

TT1000-7.5M / 25FT-PC / TT1000–15M / 50FT–PC

TraceTek sensing cables detect the presence of water at any point along their length. Installed with a TraceTek alarm and locating module, the cable senses water intrusion, triggers an alarm, and pinpoints the location.

TT-FLAT Probe

TraceTek TT FLAT PROBE (TT-FLAT PROBE) is a special purpose probe designed to detect water leaks in specific locations. It is intended to be floor or tray mounted, using either screw or adhesive attachment. The unit has an orange color to promote visibility in the installed location.

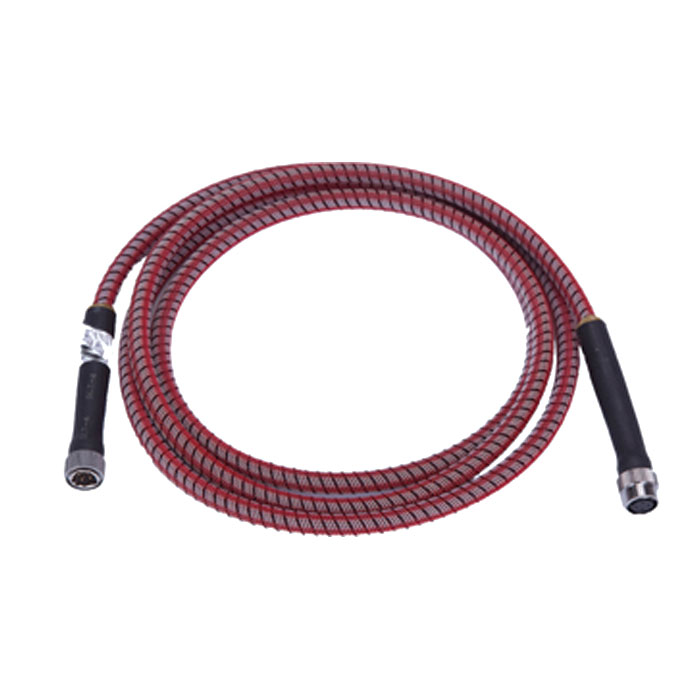

TT5000

TT5000 is a fuel sensing cable that can detect and locate spills of gasoline, jet fuel, diesel, crude oil and similar hydrocarbon liquids. It will not detect or react to water. The cable is available in outdoor (above ground), underground and indoor versions.

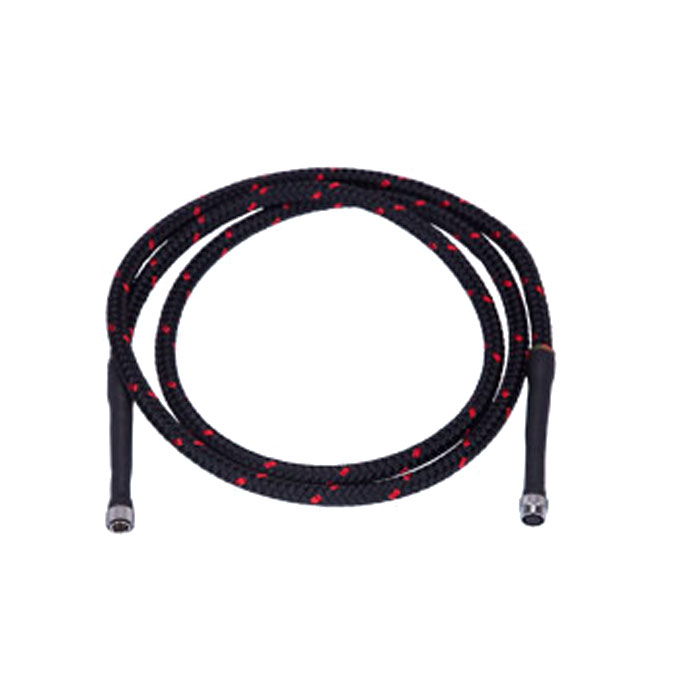

TT5000-HUV

TRACETEK TT5000-HUV is a fuel sensing cable that can detect and locate spills of gasoline, jet fuel, diesel, crude oil and similar hydrocarbon liquids. It will not detect or react to water. The TT5000-HUV cable is designed for use on aboveground pipe, around pump pads or valves where cable will be exposed to sunlight and weather during its service life.

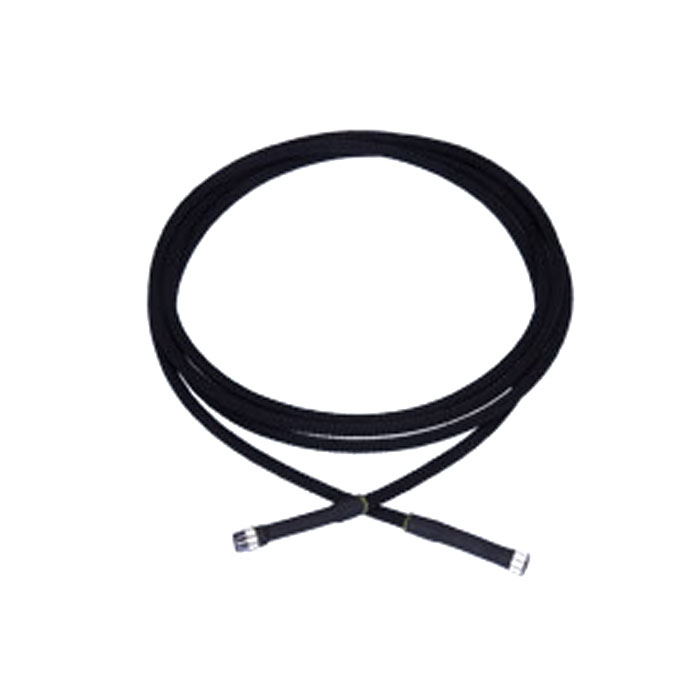

TT7000-HUV

TRACETEK TT7000 is a strong acid sensor. It responds to concentrated sulfuric and nitric acid. It can be installed outdoors in sunlight and rain or costal environments and resist environmental factors while retaining the ability to detect and locate acid leaks.
