Fireclass

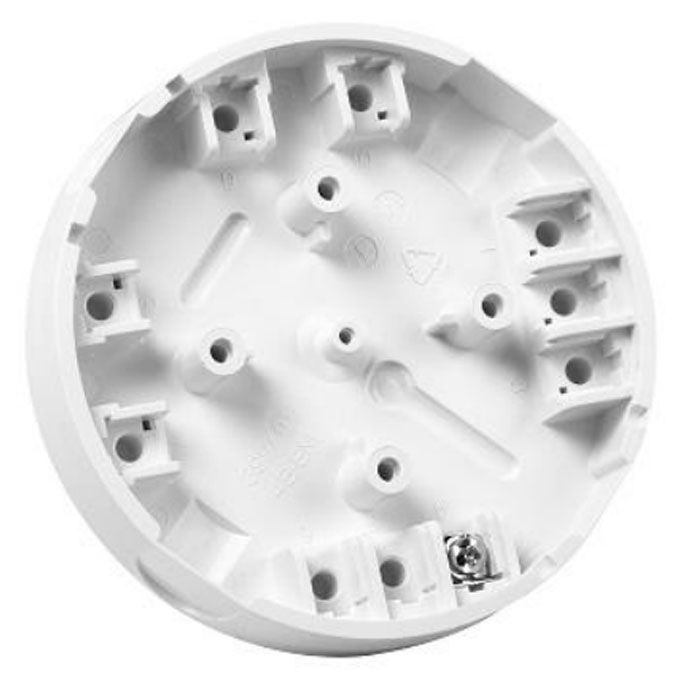

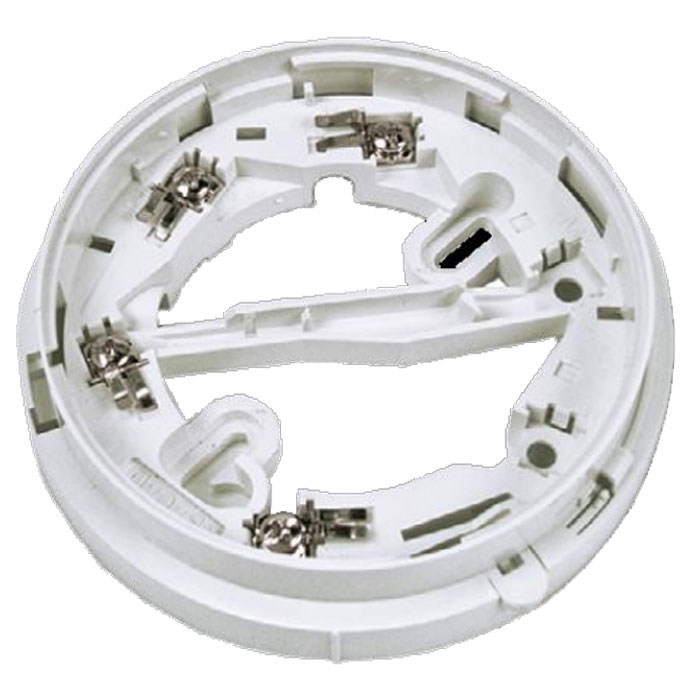

Addressable Detector Base

General features

Aesthetically discreet

  • Superior performance and reliability.
  • Designed for rapid installation.

Remote LED connection.


Item code/ name:

517.050.041 / 4B

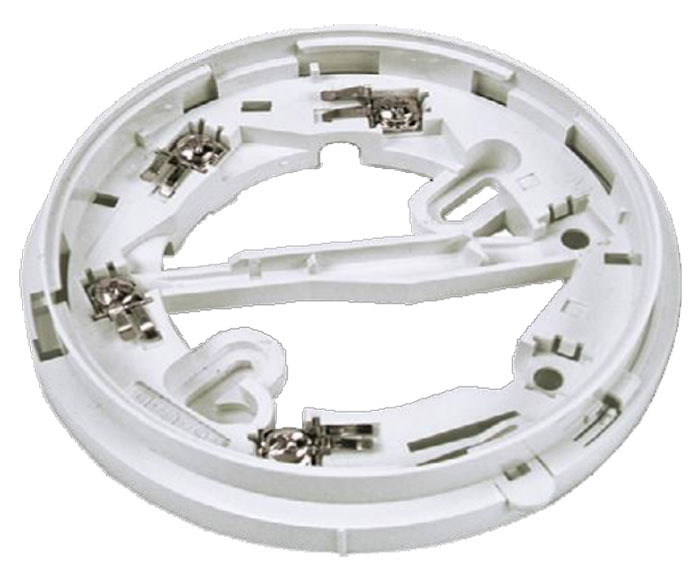

Addressable Isolator Base

General features

  • Drives a remote indicator.
  • Detector locking pin provided with every base.
  • Snap fits to the Time SaverCeiling Tile Adaptor.
  • Temporary park position.

Item code/ name:

517.050.043 / 4B-I

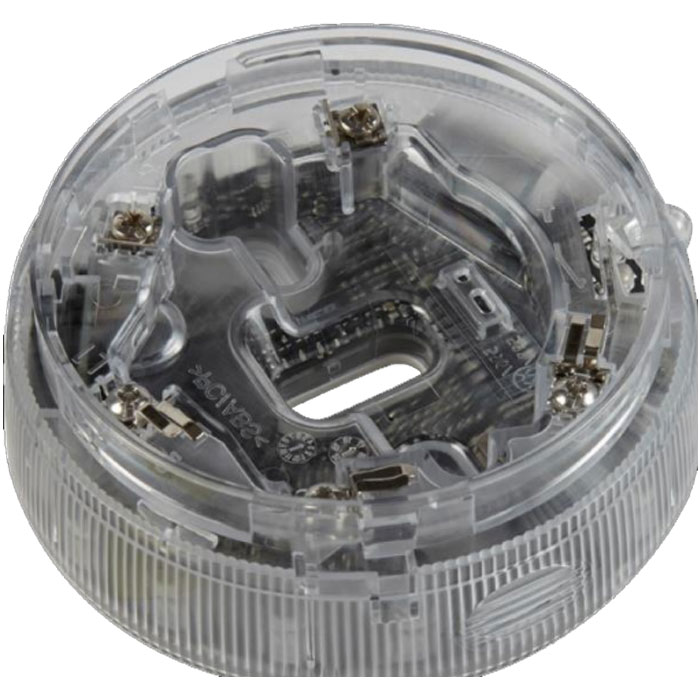

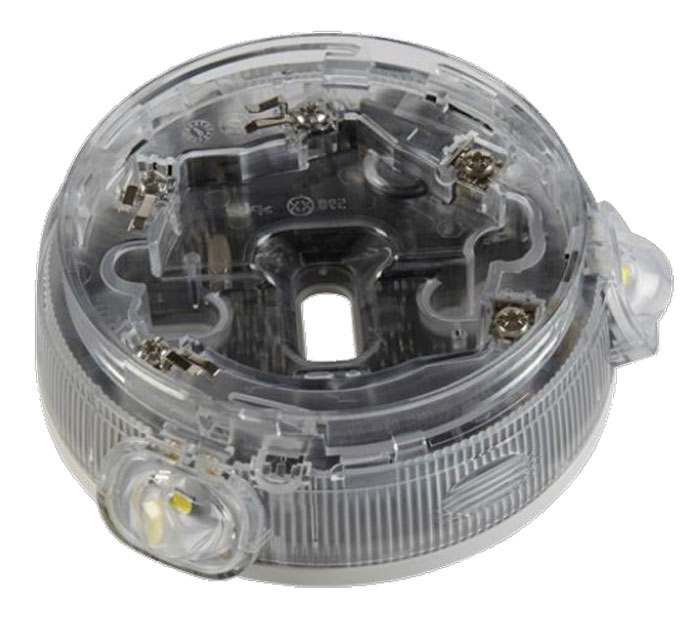

Addressable sounder Visual Alarm Bases

General features

The FC440AVB and FC441AVB are addressable sounder bases with a visual alarm device pecifically for use with the FireClass addressable detectors.


Item code/ name:

576.440.006 / FC440AVB Addressable Base Sounder VAD Standard Power
576.440.014 / FC441AVB Addressable Base Sounder VAD High Power

Addressable Sounder Base

General features

The FC440SB is an addressable sounder base specifically for use with the FireClass addressable detectors.


Item code/ name:

576.440.006 / FC440AVB Addressable Base Sounder VAD Standard Power
576.440.014 / FC441AVB Addressable Base Sounder VAD High Power

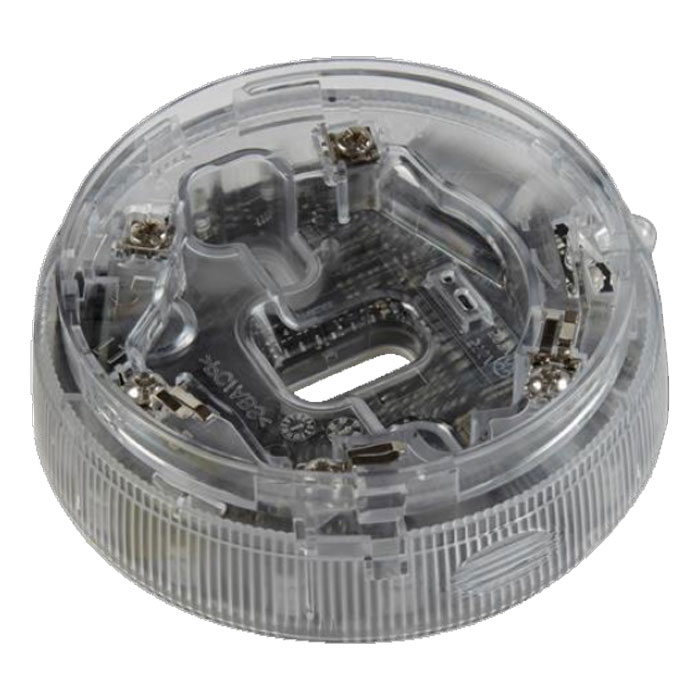

Addressable sounder base and addressable sounder VID base

General features

  • A compact and discrete solution
  • One point of installation for detector, sounder and visual indicator with no additional wiring
  • Reflective Sound Monitoring (RSM)
  • Light is electronically monitored by the control panel
  • Self-test (***)
  • Independent addressable control of the sounder and beacon
  • Built-in line isolator
  • Select the tone, volume and flash rate using panel configuration software
  • 15 selectable tones. Allows users to select the tone with which they are most familiar
  • Realistic Conventional Bell Tone
  • 4 selectable volumes
  • 2 selectable flash rates
  • Different tones can be used for fire alarm and class change
  • VIDs and sounders are synchronised over the entire loop
  • A locking pin supplied with the base which prevents the unauthorized removal of the detector.

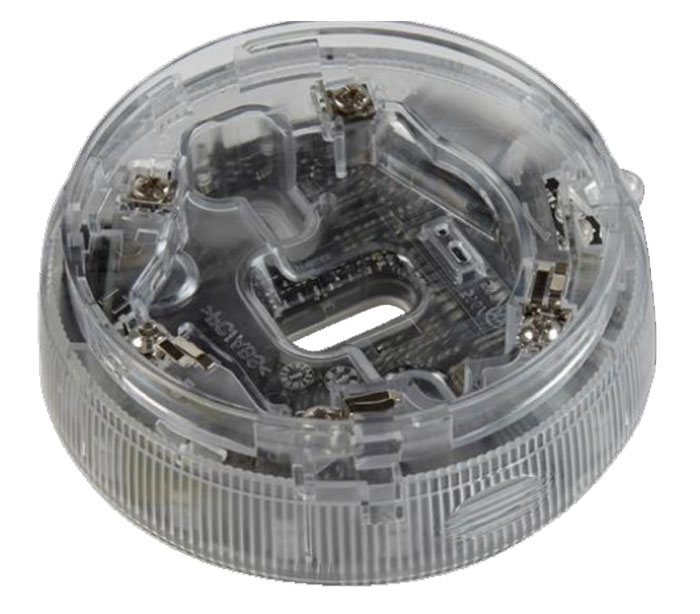

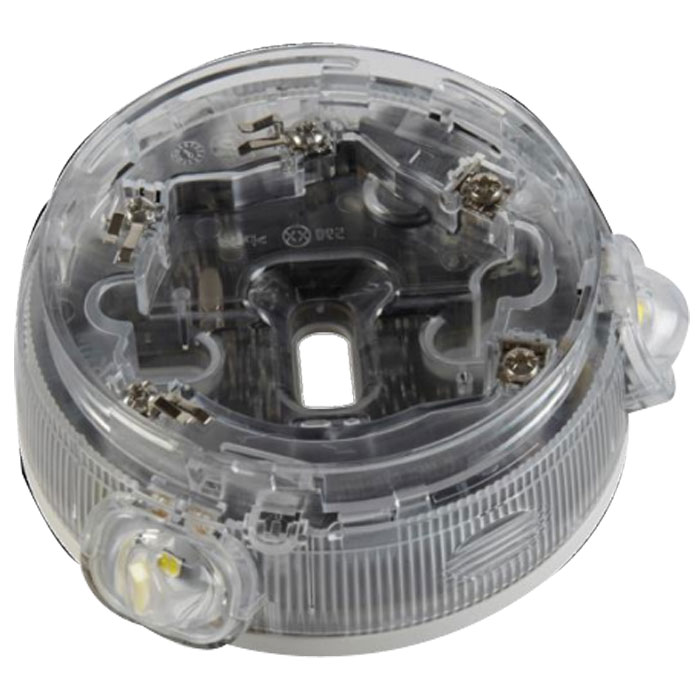

Addressable Sounder Base VID

General features

The FC440AIB is an addressable sounder base that houses an addressable LED
beacon to provide a visual indicator otherwise known as a VID.


Item code/ name:

576.440.010 / FC440AIB Addressable Base Sounder VID

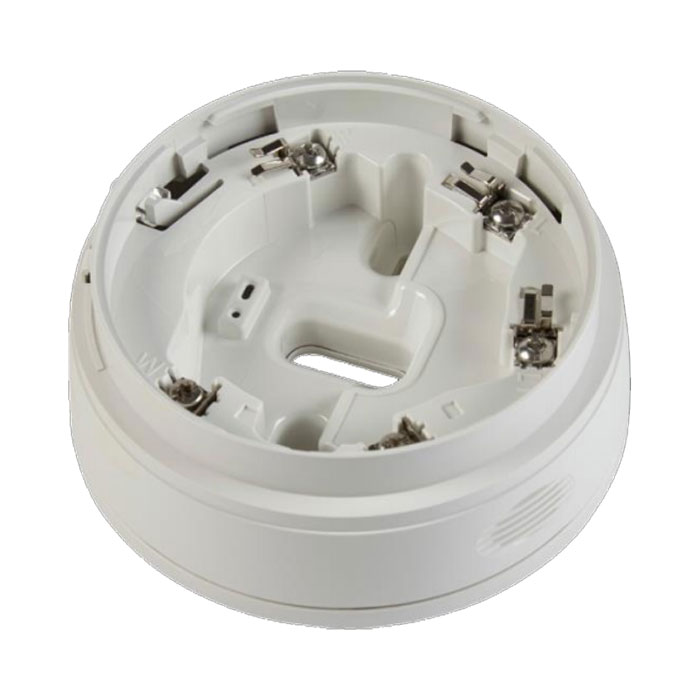

Addressable Detector activated sounder base

General features

  • A compact and discrete solution
  • One point of installation for detector and sounder with no additional wiring
  • Low power with up to 250 sounders on a single loop. Provides uncompromised system design solutions
  • Simple to select the tone and volume using switches. No special training or tools needed
  • 9 selectable tones
  • 4 selectable volumes
  • A locking pin supplied with the base which prevents the unauthorized removal of the detector
  • Replaces FC430SB and it is compatible with FireClass addressable detectors

Item code/ name:

576.440.001 / FC440DSB FireClass Detector Base Sounder

Addressable wall sounder VAD and sounder VAD base

General features

  • A compact and unobtrusive sounder solution
  • Shorter Light Pulse for faster response
  • FC445CAV is outdoor versions with a deep surface back box for use with suitable IP-rated glands and cabling
  • Power and data from the loop. No additional wiring or power supplies required
  • Built-in line isolator
  • 16 selectable tones for FC445CAV
  • 15 selectable tones for FC440AVB
  • Realistic Conventional Bell Tone
  • 2 selectable volumes for FC445CAV
  • 4 selectable volumes for FC440CAVB
  • 2 selectable flash rates
  • Select the tone volume and flash rate using panel configuration software.

Item code/ name:

576.440.016 / FC440CAVB FireClass Addressable Base Sounder Beacon VAD BC
576.440.017 / FC445CAV FireClass Addressable Wall Sounder Beacon VAD BC

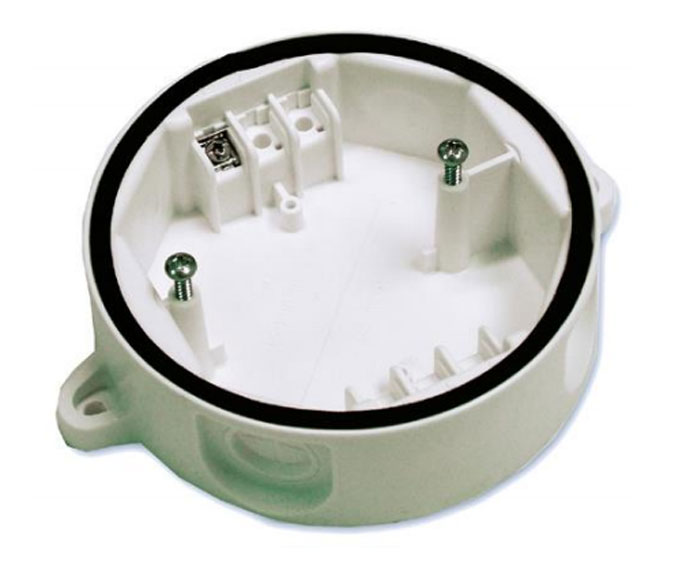

Addressable Deck Head Mounting

General features

Where the detectors are mounted in humid and environmentally challenging situations such as marine or offshore installations, the4B•DHM deck head mount provides a sealed waterproof mounting which protects the electrical connections in the base. Can be screwed, bolted / welded to the deck head. Supplied with 1 terminal. If more are required, use the optional base accessory

  • 4 x 20mm gland entries.
  • Fits ALL 5” bases.
  • IP55 with supplied gasket.

Item code/ name:

517.050.051 / 4B-DHM

Addressable Euro Mount

The euro-mounting base provides a matching back box, which allows the 5” bases to be ceiling mounted with conduit entries for standard 18 and 21mm conduit.

General features

  • 2 x 18mm conduit entries.
  • 2 x 21mm conduit entries.
  • Fits all 4” bases.
  • Accepts up to 8 accessory terminals.
  • Base Accessory terminal kit (pack of 10) part number 517.050.612

Item code/ name:

517.050.052 / 4B-EM

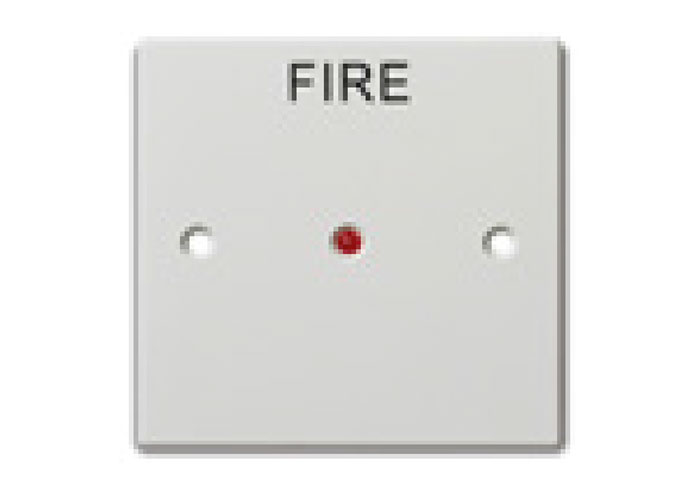

Remote LED Indicator

General features

The 801RIL Remote Indicator is used where a detector LED is not visible i.e., when the detector is mounted in a roof void, lift shaft etc. All detector bases have the ability to drive a remote LED in the event that the installed position of the detector is not easily visible

Item code/ name:

517.050.052 / 4B-EM

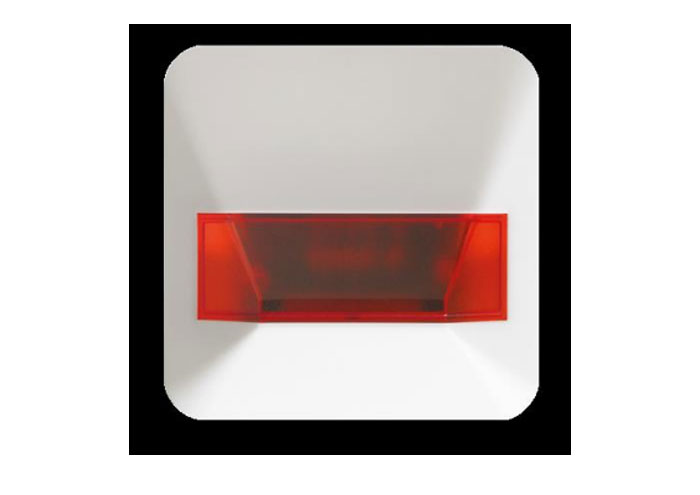

Remote LED Indicator

General features

The 801HL Remote Indicator is used where a detector LED is not visible i.e., when the detector is mounted in a roof void, lift shaft etc. The 801HL remote indicator lamp provides a larger indicator for use in place of the RIL when longer distances are involved or in VdS influenced markets. Typically used to indicate the source of an alarm in buildings with long corridors eg. hotels, hospitals, apartments

Item code/ name:

516.800.909 / 801HL
