Zettler

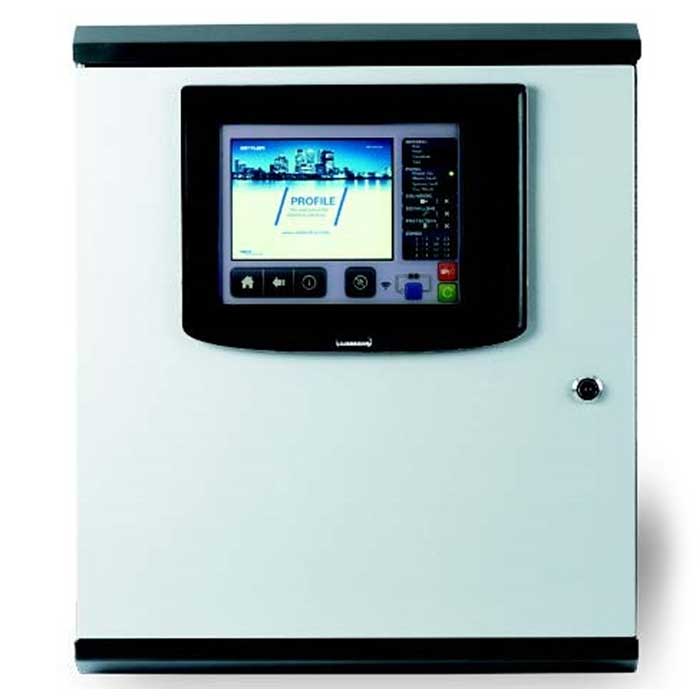

PROFILE Flexible PRO215S & PRO215D Control Panels

The PROFILE Flexible range of fire alarm control panels provide a great deal of flexibility in terms of hardware configuration, scalability and feature set. They are easy to operate, easy to install, easy to service and provide the system designer with a wide range of practical engineering solutions. Remote connectivity and backwards compatibility make it a future proof investment with long term support and reduced life time cost.

PROFILE Flexible is a highly featured digital addressable fire alarm system with an advanced TFT colour touch-screen user interface that is ergonomically engineered specifically for fire alarm control. Operation of the touch screen is possible with or without gloves and provides easy-to-use, intuitive user controls including keyless log-on using RFID cards.

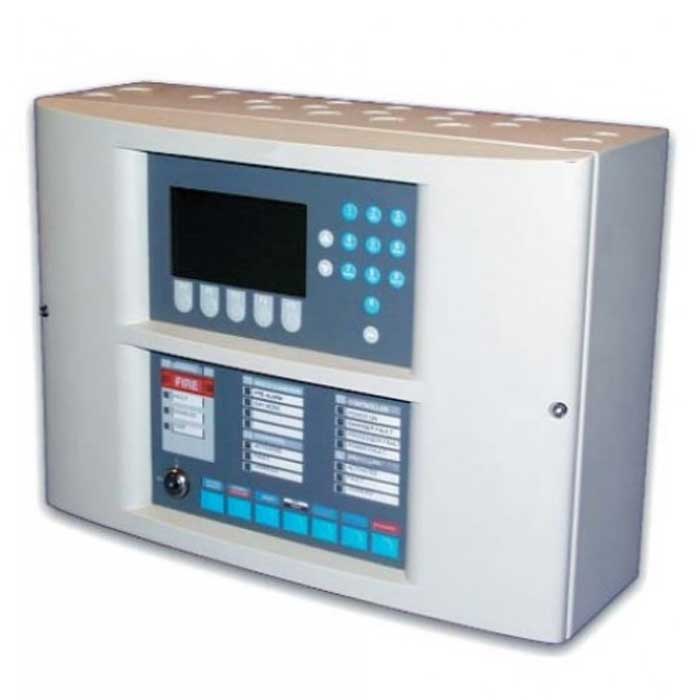

MX4000 Multi-Loop Control Panel

MZX panels are intelligent LPCB EN54 approved panels, which can be networked and installed to BS5839:Pt.1.

The MX4000 supports two MZX DIGITAL detection loops and can be expanded to four loops supporting up to 1000 addressable devices.

The panel is constructed with a strong steel enclosure incorporating a removable chassis plate.

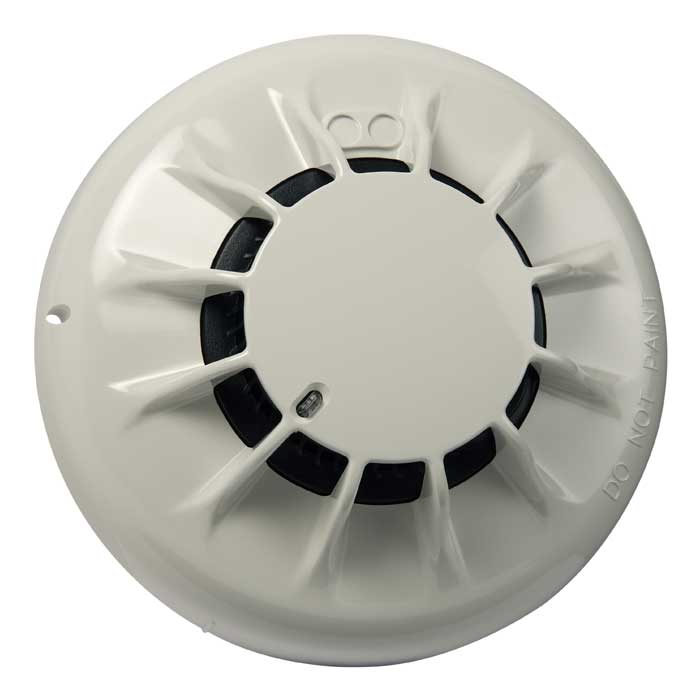

850PH and 830PH Gen-6 Photo Heat Detectors

With the ability to detect a wide range of fires from flaming to smouldering types, the combined optical and heat multi-sensor detector is the preferred choice for a range of applications including light industrial, retail and office environments. It operates in a number of approved modes and sensitivities that can be dynamically selected to suit different environmental conditions.

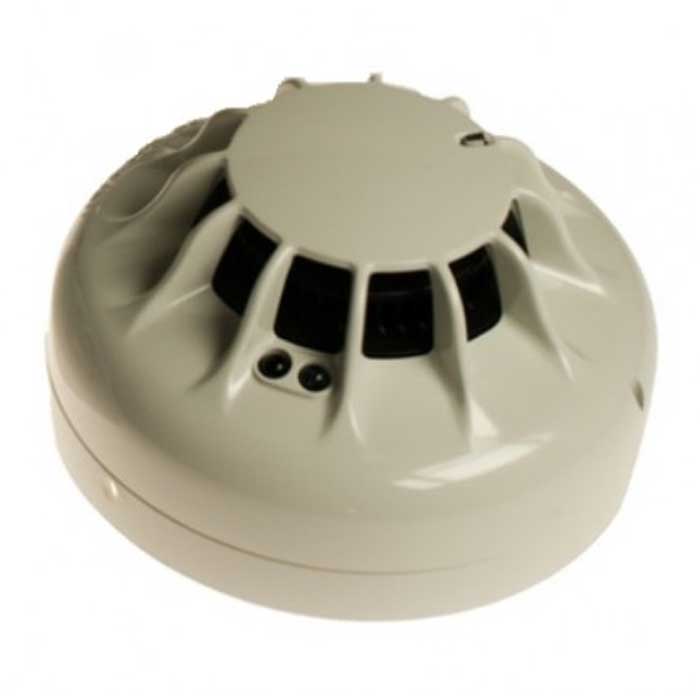

850P and 830P Gen-6 Photo Detectors

More benign environments where any potential fire will be slow burning can be protected using the optical detector. A choice of sensitivities and modes gives this detector a broad range of applications.

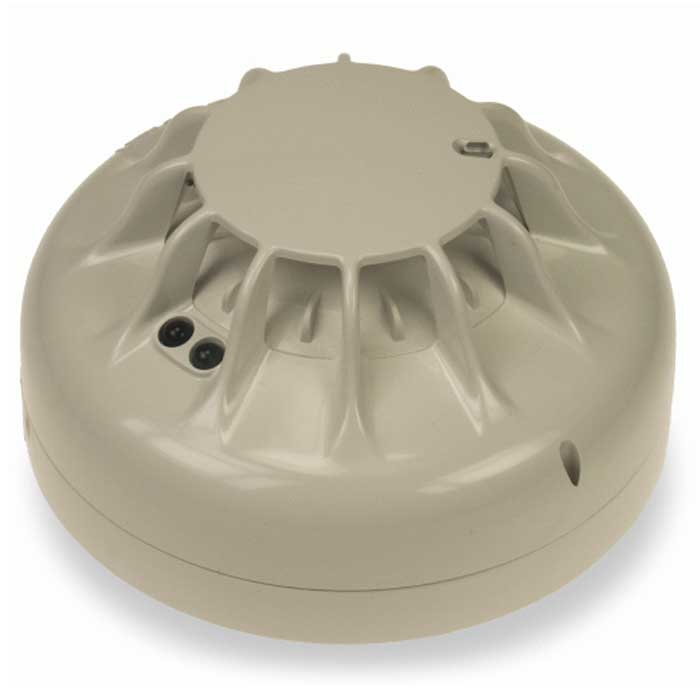

850H and 830H Gen-6 Heat Detectors

To compliment the range the heat sensor can operate in fixed temperature and rate-of-rise modes with a number of approved sensitivities. Most often used in areas where high levels of dust are present or where the environment precludes the use of smoke detectors.

+91 9819522000

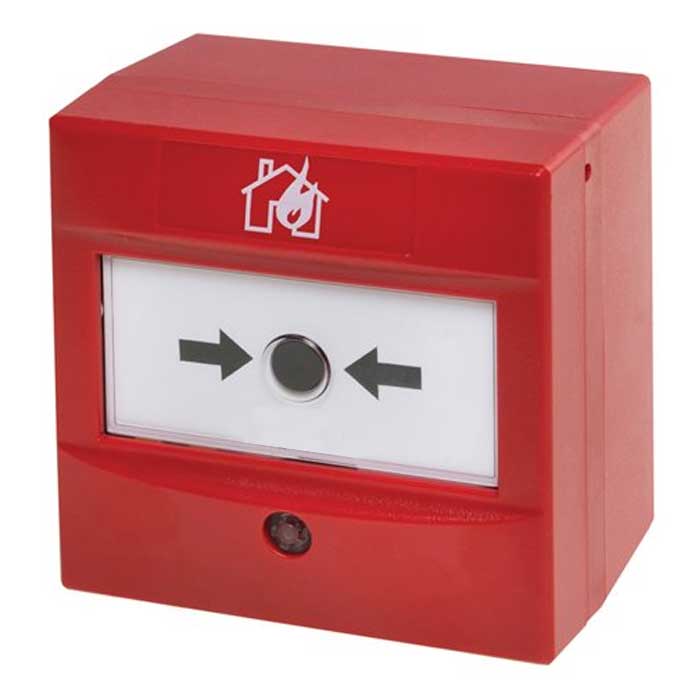

MZX Indoor Callpoints

The CP820 is an indoor MZX addressable manual callpoint with programmable status LED. The CP820 is designed for LPCB approvals. The CP820 provides high speed communication to the MZX panel of a manual fire alarm.

The MCP820 offers the same features plus an integrated line isolator. In the event of a short-circuit on the loop, the line isolator isolates the affected part of the loop and ensures that the parts of the loop that are not affected by the failure continue to work.

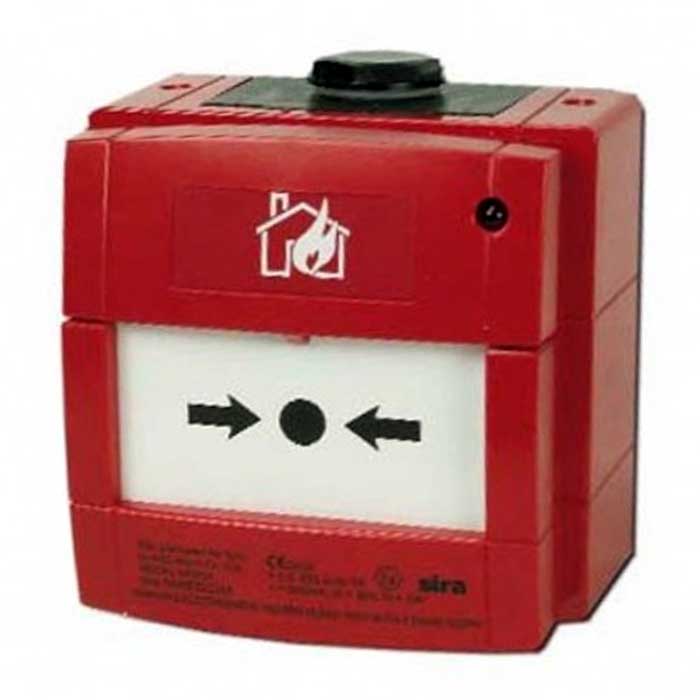

MZX Intrinsically Safe Addressable Callpoints

CP830Exn / CP840Ex Break Glass Call Point
The CP830Exn and CP840Ex Weatherproof Break Glass Call Points are designed to monitor and signal the condition of a switch contact associated with the break glass.

BG MIM800 Callpoint EX II 2 GD
An Ex II 2 GD Dust Approved & Increased Safety (EExemd) Resettable Manual Alarm Call Point for use with the EExd Flameproof MIM800 input module in EExd housing on an Addressable Detection & Releasing System in gas and dust explosive risks.

MZX Outdoor Callpoints

The CP830 is an outdoor MZX addressable manual callpoint with programmable status LED. The CP830 is designed for LPCB approvals The CP830 provides high speed communication to the MZX panel of a manual fire alarm.

The MCP830 offers the same features plus an integrated line isolator. In the event of a short-circuit on the loop, the line isolator isolates the affected part of the loop and ensures that the parts of the loop that are not affected by the failure continue to work.

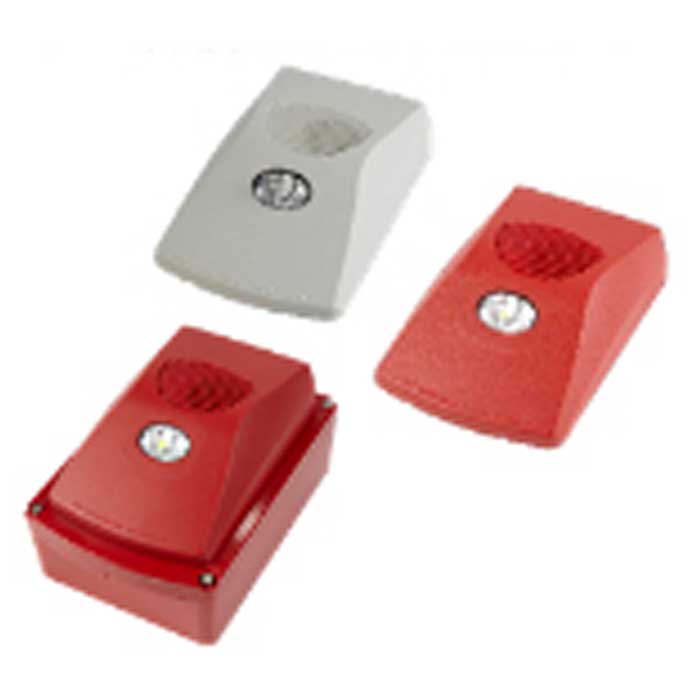

Addressable Wall Sounder VADs

The P80AV range of compact addressable wall sounders with a Visual Alarm Device (VAD) includes three models with the same low current and high output specification; red and white body indoor models plus an IP rated version for either outdoor or harsh environment applications.

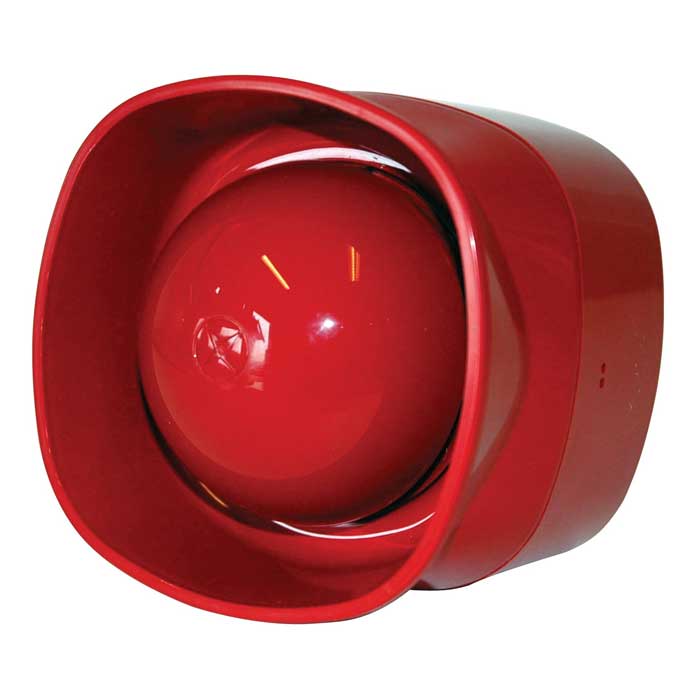

Symphoni Loop Powered Sounders

The LP Symphoni range of Sounders and Sounder Beacons are designed to operate on the robust MZX digital loop, An internal line isolator automatically provides short circuit protection against cable faults thus reducing the need for additional line isolator modules.

The addressable loop powered sounders meet the requirements of EN54 part 3 whilst the loop powered addressable sounders with beacon are also approved to EN54 part 23 as open category devices.

A high (103dB) output or low (90dB ) output can be selected for any of the 16 selectable tones.The high brightness LED beacon provides a 2 candela output with adjustable flash rate.

Programming has been simplified by allowing the tone, volume and flash rate to be set by the MZX Consys configuration utility. This means adjustments to the settings can be achieved without having to access the sounder location. Changes can be made to all sounders by a single panel software download which saves time and reduces commissioning costs.
